Horizontal Industrial Wood Shaving Machine

Industrial wood shaving machines are capable of converting logs, wood blocks, and wood scraps into high-quality wood shavings, which are widely utilized across various industries, including animal bedding, poultry farming, horse stables, pet bedding, biomass fuel production, and edible mushroom cultivation.

Shuliy offers two primary models of horizontal wood shaving machines: the standard blade-type model and the spiral shaft-type model. Both models feature stable operation, high output, adjustable shaving thickness, and high wood processing efficiency for fully meeting the demands of industrial production.

Advantages of the Industrial Wood Shaving Machine

1. This equipment boasts a processing capacity of up to 1,500 kg/h, making it suitable for medium-to-large-scale industrial production.
2. Users can adjust the shaving depth within a range of 0.1 mm to 1 mm, depending on the specific requirements for bedding material or biomass raw materials.
3. The feeding mechanism features a horizontal design, ensuring smooth wood intake and enabling stable, continuous operation of the machine.
4. The industrial wood shaving machine is equipped with high-strength alloy blades, guaranteeing an exceptionally long service life and effectively reducing maintenance costs.
5. Furthermore, the equipment features a streamlined structural design, making operation, cleaning, and routine maintenance tasks remarkably easy and convenient.

Working Principle of Industrial Wood Planers

An industrial wood planer primarily consists of a feed hopper, a clamping mechanism, a cutter shaft, blades, a transmission system, and a discharge outlet.

As wood is fed into the machine and the equipment begins operation, the clamping mechanism securely holds the wood in place.

Simultaneously, high-speed rotating blades continuously cut the wood’s surface, planing it into thin shavings or curled wood chips, which are then automatically discharged through the outlet.

Types of Industrial Wood Shaving Machine

Standard-Blade Wood Planer

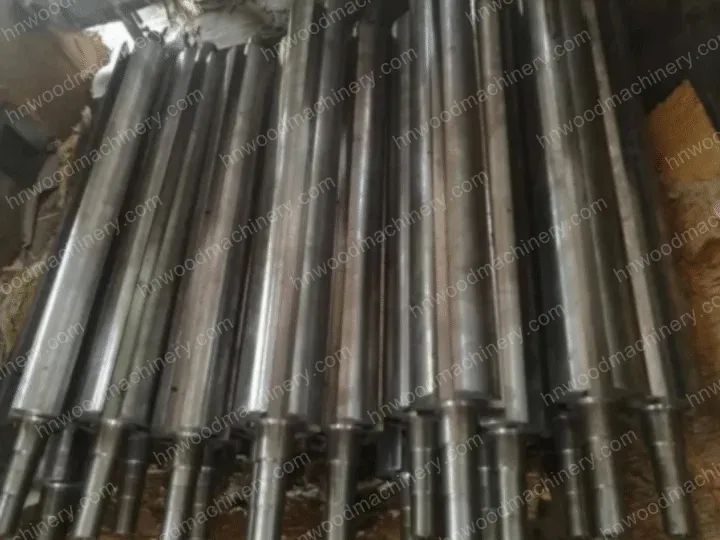

The standard-blade wood planer utilizes traditional flat blades mounted on a rotating shaft to process wood into wood shavings through a cutting action. This type of machine is suitable for general wood shaving production and the processing of biomass materials.

نموذج	SHBH500-2H	SHBH500-4H	SHBH500-6H
Max processing wood length	800 mm	1400 mm	1400 mm
Max processing wood width	500 mm	500 mm	500 mm
Axle quantity	2	4	6
Blade quantity	8	16	24
Speed	3500 r/min	3500 r/min	3500 r/min
Hopper length	800 mm	1400 mm	1400 mm
إجمالي الطاقة	10.5 KW	23.25 KW	30.75 KW
Wood shaving depth	0.2-1 mm	0.2-1 mm	0.2-1 mm
Fresh wood capacity	500 kg/h	1000 kg/h	1500 kg/h
وزن	950 kg	1800 kg	2200 kg

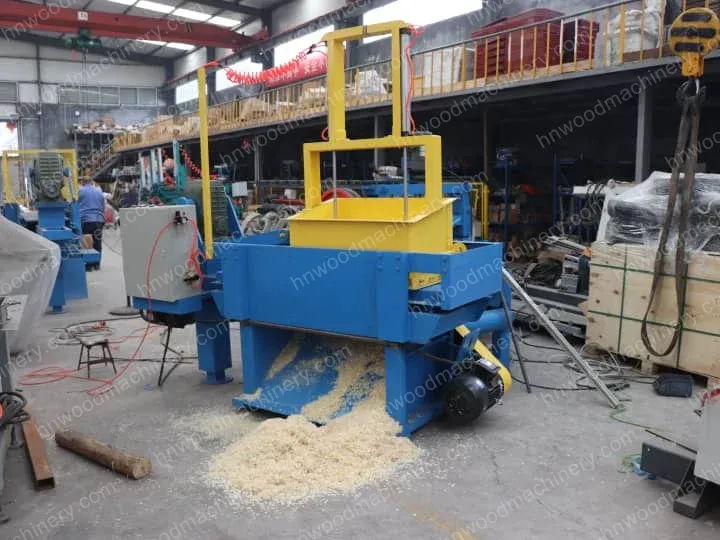

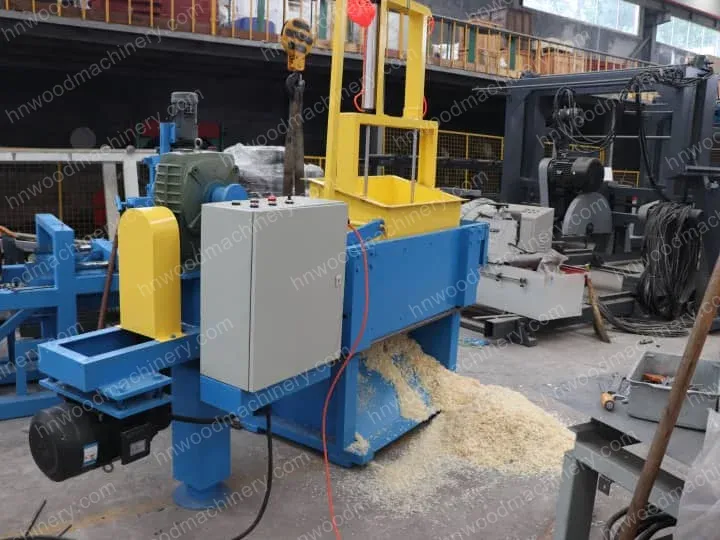

Spiral-Shaft Wood Shaving Machine

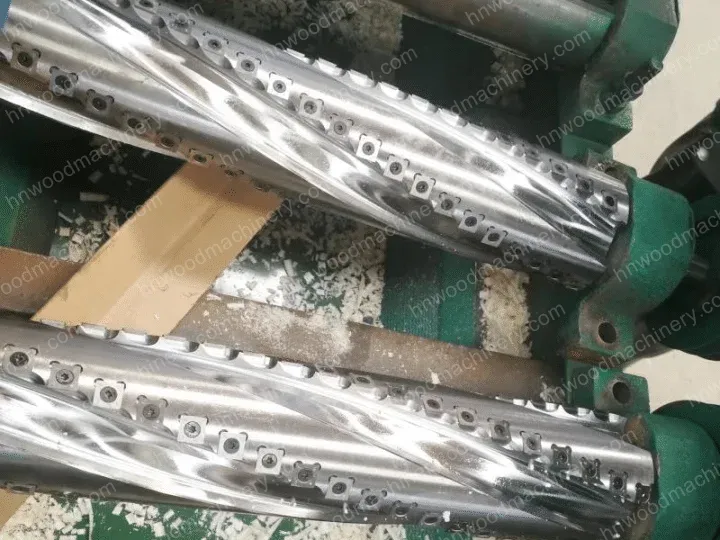

The spiral-shaft model utilizes multiple blades arranged in a helical pattern, enabling the production of finer, softer wood shavings. It is an ideal choice for manufacturing high-quality pet bedding and animal nesting materials.

نموذج	SHBH500-2-L	SHBH500-4-L	SHBH500-6-L
Max processing wood length	800 mm	1400 mm	1400 mm
Max processing wood width	500 mm	500 mm	500 mm
Axle quantity	2	4	6
Blade quantity	108×2	108×4	108×6
Speed	3500 r/min	3500 r/min	3500 r/min
Hopper length	800 mm	1400 mm	1400 mm
إجمالي الطاقة	10.5 KW	23.25 KW	30.75 KW
Wood shaving depth	0.1-1 mm	0.1-1 mm	0.1-1 mm
Fresh wood capacity	500 kg/h	1000 kg/h	1500 kg/h
وزن	950 kg	1800 kg	2200 kg

Difference Between Standard Blade and Spiral Shaft Wood Shaving Machines

عنصر	Standard Blade Type	Spiral Shaft Type
Blade structure	Flat blades	Spiral-arranged blades
Shaving size	Standard size	Smaller and softer
Shaving thickness	0.2-1mm	0.1-1mm
Finished material	Regular wood shavings	Fine fluffy bedding
Best application	Biomass fuel, packaging, farms	Pet bedding, horse bedding
Cutting effect	Strong cutting capacity	More delicate shaving effect

How to Choose the Right Industrial Wood Shaving Machine?

If you require standard wood shavings, primarily for biomass fuel production—and need to process waste wood in bulk while keeping equipment investment costs low, the standard blade-type machine is the most suitable choice.

However, if your goal is to produce high-quality pet bedding, catering to clients such as horse stables or poultry farms, and you are seeking superior-grade bedding material, then the spiral-shaft type is the best option!

If your production requirements are modest and you need a compact, easily portable wood planer, this model is a better fit for you: Good Price Wood Shaving Machine.

Why Choose Shuliy Industrial Wood Shaving Machines?

1. Shuliy possesses extensive experience in manufacturing wood processing equipment for clients worldwide.
2. We offer various models with different capacities and blade configurations to meet a wide range of production requirements.
3. We provide customized solutions: voltage, motor type, feed size, and overall machine configuration can all be tailored to your specific needs.
4. Every piece of Shuliy equipment undergoes rigorous testing prior to leaving the factory to ensure stable and reliable performance.
5. We also offer comprehensive after-sales support, including installation guidance, technical assistance, spare parts supply, and operational training.

Shuliy industrial wood shaving machine is suitable for producing both standard wood shavings for biomass processing and soft, fine shavings for pet bedding. Thanks to its high efficiency and robust, durable construction, it has become the preferred choice for numerous customers.

If you are interested in our machines or would like to inquire about further details, please do not hesitate to contact me!
